Product description

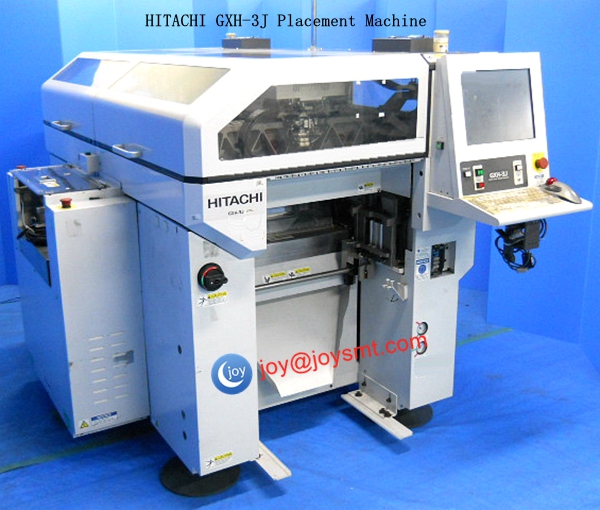

HITACHI GXH-3J Placement Machine
A placement system with the ludicrous placement rate of 12000CPH
.
and flexibility to place components ranging from 0201(0603mm) chip to 100x26mm connector.
Two independent work cells (stages) allow simultaneous assembly of two boards.
All X and Y axes are operated by linear motors.
Each Y axis has two motors for enhanced stability and repeatibility.
Four placement heads have up to 12 nozzles each.
On-the-fly recognition of all components.
A line sensor on each head checks for component presence, orientation, and correct thickness.
Unique board conveyor system moves both rails for optimum board postioning during production.
No more "fixed rails"!!!
An option exists for the placement of 01005 (0402mm) chip components.
Board Dimensions
50 X 50 to
460 X 460mm
(610 X 460 optional)
Thickness:
0.5 to 5.0mm
Component Package
8mm (paper)
8 to 72mm
(embossed)
Tray, Stick
Component
Sizes
High speed head 0603 (0201) to 44 X 44mm 0402 (01005)
(option)
Multi-function head 3216(1206)
to 55 X 55mm 100 X 26mm (Connector)
Mounting Accuracy
50 μm
(3σ)
